ALL-ACCESS ADVENTURE

The 775 AM isn’t just a bike, it’s a shapeshifter. Built for every kind of rider—from first-timers to full-on trail junkies—it combines modern geometry with modular design and progressive suspension to handle any terrain you throw at it.

Highly advise getting a Timber Bike Belll to warn people you're coming before you scare the pants off of them. This bell features an on/off switch to make it silent, and the entire CCW crew runs these bells when riding public trail systems—they are fantastic!

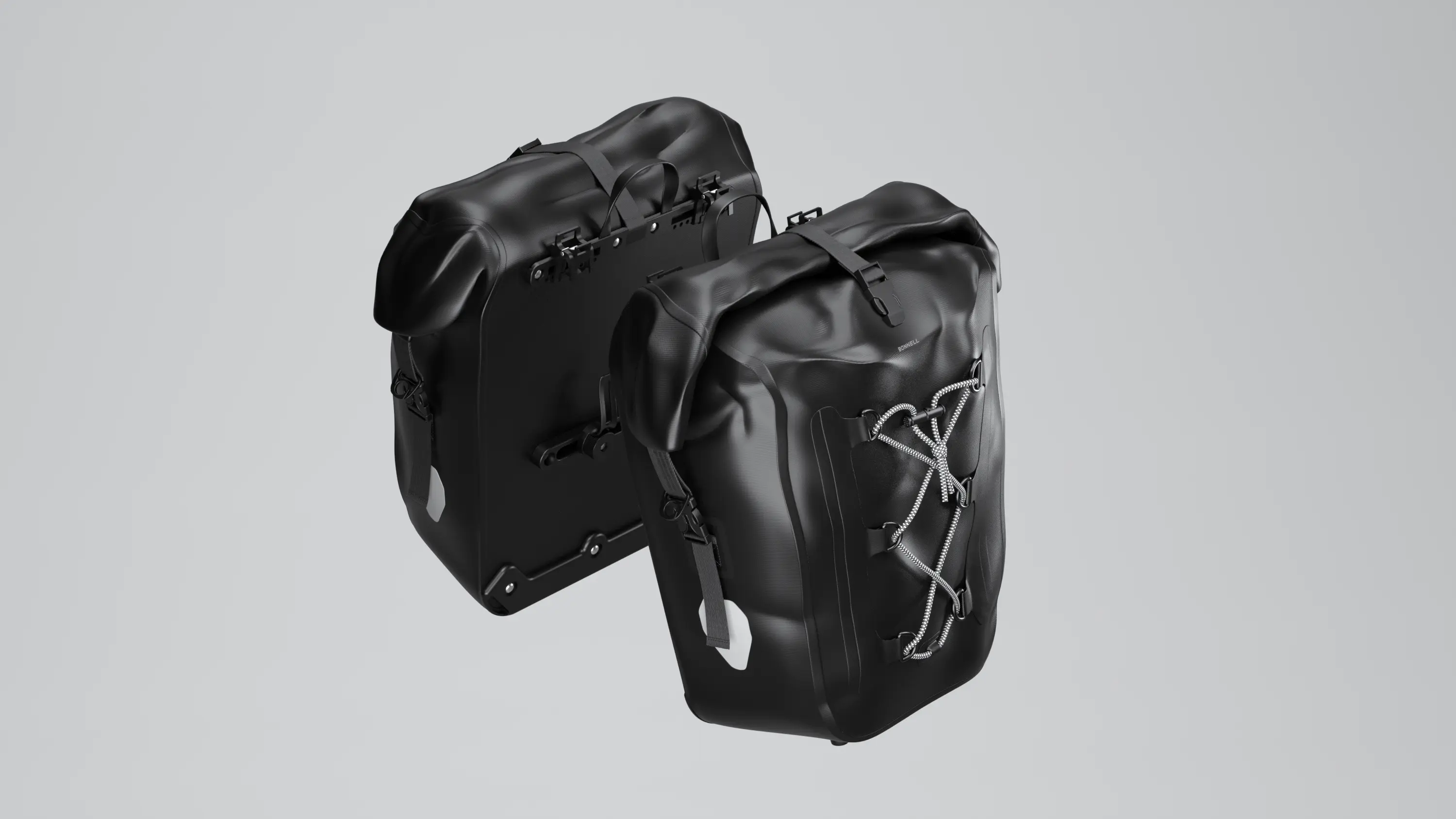

Touring Package: Ready for Your Commute and Beyond

The Photon motor packs 1,200 watts of peak power and 110 Nm of torque, delivering outstanding versatility and performance. Built to Class 2 compliance, the throttle offers effortless cruising up to 25 kph (20 mph), while unlocking full power through the Bonnell Riding app lets you go all-out in off-road settings. With Pedal Assist (PAS), you get a seamless mix of motor and pedal power, letting you take on any trail and define your own epic adventure.

Elevate Your Ride: Intuition Display

Sleek, powerful, and ultra-responsive interface that puts control and real-time performance data within view.

Power Your Ride: The AM Batteries

The A-series quick-connect battery comes with two capacity options—520Wh or 780Wh—to suit your riding needs. This battery is designed to keep you powered for longer rides, offering a range of up to 70 km (43 miles). Whether you opt for the 520Wh or the higher capacity 780Wh, both provide exceptional performance and range for your adventures.

Engineered for Durability: The 775 Frame

The 775 AM boasts a rugged 4130 chromoly front triangle with an anti-rust ED coating for lasting durability, complemented by 6061 forged aluminum chainstays, adjustable dropouts, and sealed bearings that deliver smooth, reliable performance on tough trails. Paired with the Suntour Durolux 36x/38x fork and TriAir 3CR shock, this setup provides pro-level ride quality, with custom tuning that elevates both comfort and control—ready to adapt to any challenge.

Sizing Chart

Bonnell Ride Control App

The Bonnell Ride Control App offers extensive customization for your riding experience. Connecting via Bluetooth® to your bike allows for a wide range of settings that can be tailored specifically to your preferences. A standout feature is the ability to fully customize the factory set power modes, allowing you to tune each one for different conditions.

Beyond power modes, you can also fine-tune pedal assist levels, helping you customize the motor’s assistance while pedaling. Additionally, the app lets you control power delivery settings in both the torque sensor and throttle—offering flexibility in how you ride.

The built-in dashboard tracks key metrics like speed, distance, battery life, component temperatures, and more, making it easy to monitor progress or set personal goals. Compatible with iPhones and Android devices.

Suntour TriAir 3CR

The Suntour TriAir 3CR shock features a Trunnion mount design with a custom compression tune crafted specifically for the Bonnell 775 AM. With a three-position compression lever, a rebound knob, and adjustable air spring, it can be fine-tuned mid-ride to match your weight and riding preferences, giving you the freedom to adapt on the fly.

The lower shock mount provides two settings—"comfort" and "sport"—giving you the flexibility to adapt your ride. Comfort reduces progressivity for smooth compliance over small bumps, while sport increases resistance for more direct feedback on the trail.

Suntour Durolux 36x/38x RC+

Built for all-mountain and enduro riding, this fork combines high performance with easy adjustability. Featuring 36mm aluminum stanchions on S/M sizes and 38mm on L/XL sizes, it delivers a customized feel tailored to each rider’s needs.

Equipped with advanced damper technology, the fork offers precise tuning with adjustable rebound and compression settings, allowing riders to dial in their setup for any trail conditions. With 160mm of travel across all sizes, it provides reliable control and responsiveness on tough terrain. An integrated fender keeps your face clean and protected.

Magura MT5

The Magura MT5 is a high-performance hydraulic disc brake system designed for powerful and reliable braking. It features four pistons, providing enhanced braking power and modulation. MDR-C rotors (220mm front, 203mm rear) maximize heat dissipation and maintain consistent performance under load.

The brake levers can be swapped from one side to the other without bleeding, allowing riders to match their preferred setup effortlessly. The MT5 offers exceptional braking power, control, and heat management, making it an outstanding choice for demanding trails.
